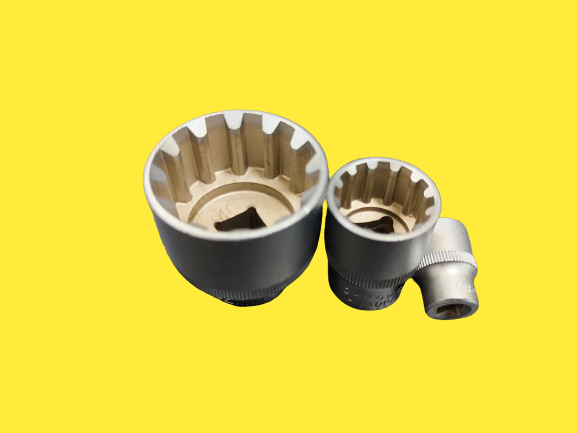

1/2" DR. MULTI PLUS SHORT SOCKET

Product Description: 1/2"Dr. Multi Plus Short SOCKET(CR-V)
12PT MULTI PLUS SHORT SOCKET
Category:

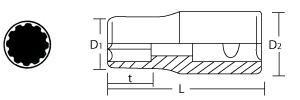

Product Dimensions

MM	ITEM NO.	D1	D2	t	L	g/each
		mm	mm	mm	mm	g
8	K423608	13.5	22	12	38	50
9	K423609	14.5	22	14	38	50
10	K423610	16	22	14	38	51
11	K423611	17	22	14	38	50
12	K423612	18	22	14	38	50
13	K423613	19	22	14	38	50
14	K423614	20.5	22	14	38	52
15	K423615	23	21.5	14	38	63
16	K423616	24	22	14	38	63
17	K423617	24	22	13	38	60
18	K423618	26	24	13	38	76
19	K423619	27	24	14	38	76
20	K423620	28	24	13	38	82
21	K423621	29	24	14	38	82
22	K423622	30.5	24	14	38	87
23	K423623	32	29	16	40	94
24	K423624	34	26	16	40	115
25	K423625	37	27	16	42	150
26	K423626	37	28	18	42	152
27	K423627	38	29	17	42	155
28	K423628	40	28	17	42	170
29	K423629	41	29	17	42	170
30	K423630	42	29	18	45	188
31	K423631	42.5	29	19	45	188
32	K423632	44	30	19	45	195
